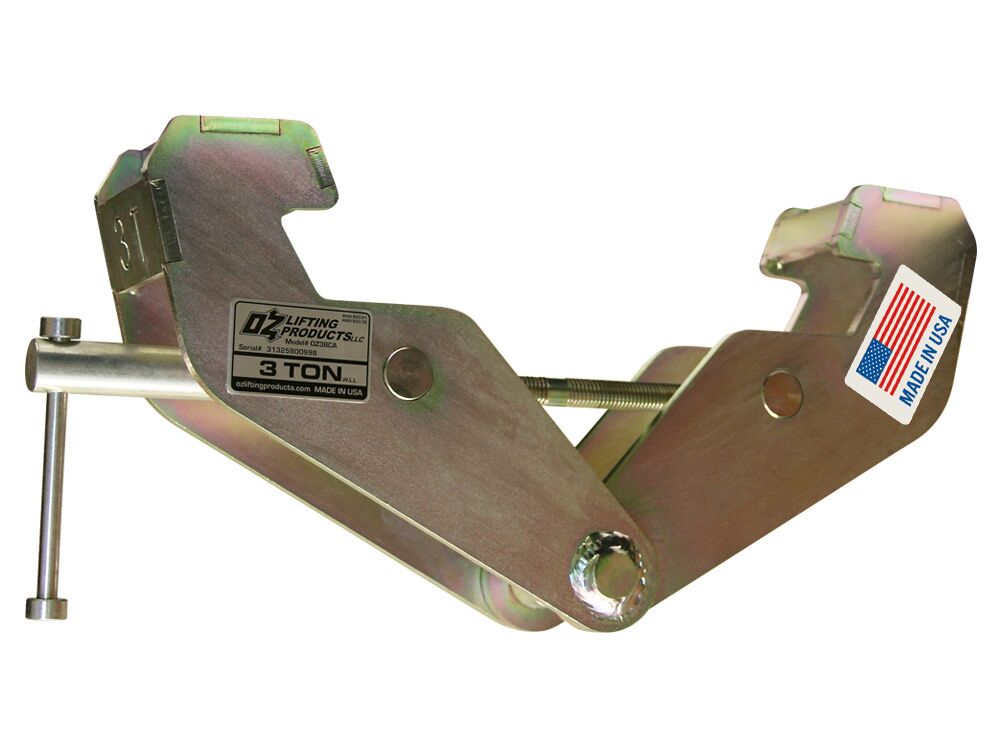

3 T Beam Clamp (Made in USA)

Standards – Meets ASME BTH-1, ASME B30.20 and complies with portions of ASME B30.16 for use with manual and powered hoists.

Oz Product Made in the USA Badge
The USA Beam Clamp (3T) from OZ Lifting Products showcases robust American manufacturing with its all-steel, fully-welded construction. Engineered for use with manual or powered hoists, this clamp ensures rapid and secure attachment to most I-beams. With a 3-ton lifting capacity, it is perfect for heavier lifting applications. Each clamp undergoes individual testing to guarantee high-quality performance. Proudly made in the USA, the USA Beam Clamp provides dependable strength and efficiency for a wide range of industrial uses.

  • Robust all-steel, fully-welded construction
  • Super-quick adjustment to most I-, S-, and W-beams
  • ROHS-compliant zinc-plated finish
  • ID tag with rated load capacity, made from industrial metalized polyester
  • Individual serial number and test certificate
  • Made in USA

OZ3BCA

3 T Beam Clamp (Made in USA)

    Videos

    Photos

    Add-Ons

    System Components

    Drawings

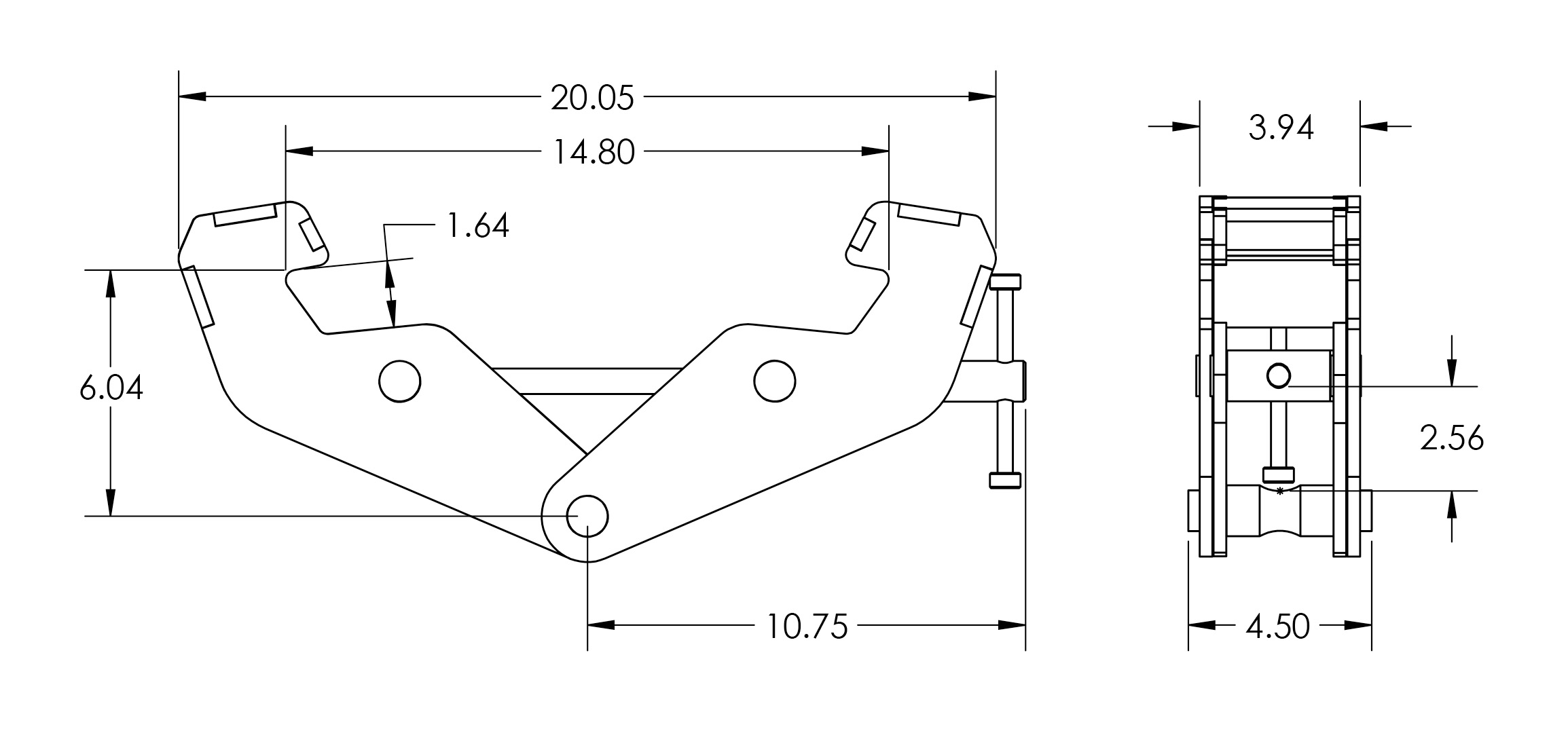

    Dimensional Drawing 1

    Specs & Ratings

    Capacity - Ton (kg) 3 (2721.60)
    Dimensional Information - in (mm) A 3.5-13 (88.9-330.2)
    B 20.5 (520.7)
    C 3.94 (100.08)
    D 1.5 (38.1)
    E 11 (279.4)
    F 7.5-9 (190.5-228.6)
    G 2.5 (63.5)
    H 0.975 (24.77)
    Net Weight - lb (kg) 22 (10)

    IMPORTANT!

    *Dimensions, weights, and illustrations are for reference only and subject to change without notice.
