Push Beam Trolley

OZ1PBT

Push Beam Trolley

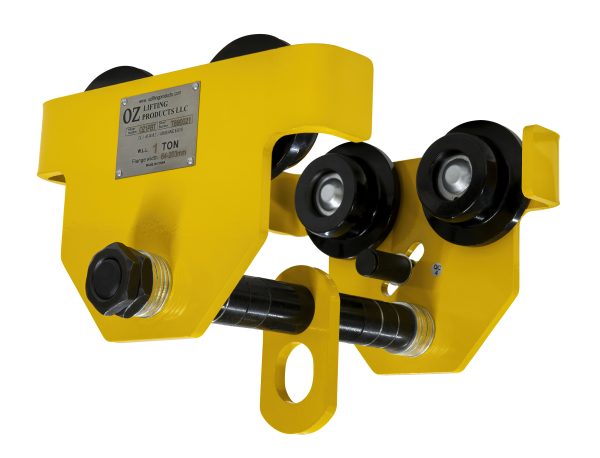

1 T Push Beam Trolley

Standards – CE, ASME/ANSI B30.17

The Push Beam Trolley (1T) by OZ Lifting Products is engineered for reliable and safe transport of heavier loads. Its quick-adjust design and smooth-rolling wheels ensure easy maneuverability, while the durable anti-drop plate adds an extra layer of safety. Suitable for a range of industrial applications, this trolley combines tough construction with efficiency, making it a dependable choice for demanding lifting tasks.

  • Lightweight, robust construction
  • Double-baked enamel trolley wheels provide added protection
  • Precision ball bearing trolley wheels
  • Anti-drop plate ensures safe load handling
  • Fits to most I-, S-, and W-beams
  • Stainless steel ID tag
  • Individual serial number and test certificate

OZ1PBT

1 T Push Beam Trolley

    Photos

    Add-Ons

    System Components

    Drawings

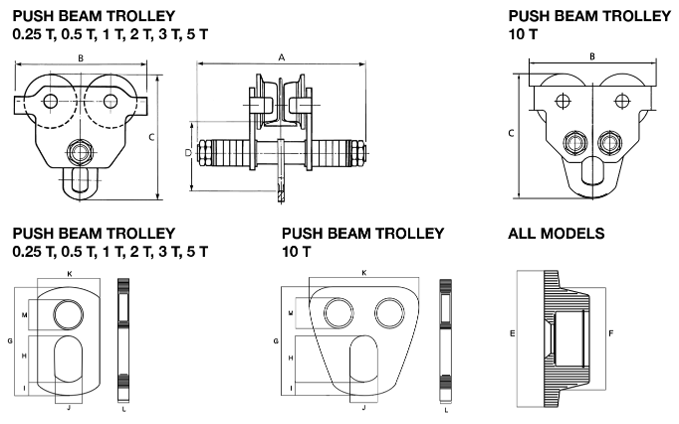

    Dimensional Drawing 1

    Specs & Ratings

    Capacity - Ton (kg) 1 (907.20)
    Adjustable flange width - in (mm) 2.52-8 (64.01-203.20)
    Max Flange Thickness - in (mm) 1.50 (38.10)
    Dimensional Information - in (mm) A 12.75 (323.85)
    B 9.45 (240.03)
    C 8.41 (213.61)
    D 4.90 (124.46)
    E 3.50 (88.90)
    F 2.48 (62.99)
    G 4.21 (106.93)
    H 1.52 (38.61)
    I 0.75 (19.05)
    J 1.26 (32.00)
    K 2.24 (56.90)
    L 0.39 (9.91)
    M 1.02 (25.91)
    Minimum radius curve - ft (m) 3.28 (1.00)
    Net weight - lb (kg) 22 (10)
    Bail Pins 1

    IMPORTANT!

    *Dimensions, weights, and illustrations are for reference only and subject to change without notice.
