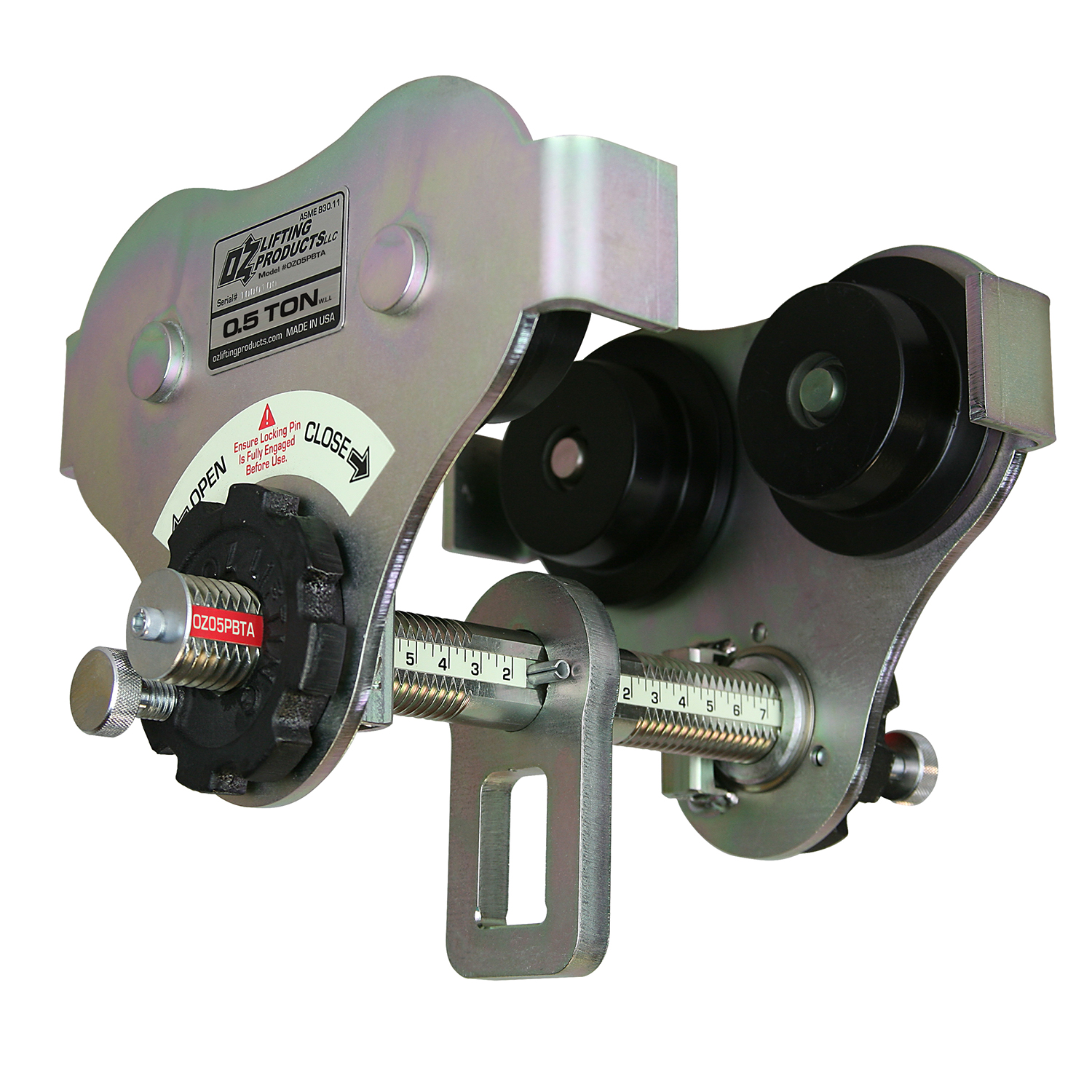

Push Beam Trolley

OZ05PBT

Push Beam Trolley

.5 T Push Beam Trolley

Standards – CE, ASME/ANSI B30.17

Optimize your lifting tasks with the Push Beam Trolley (0.5T) from OZ Lifting Products. This durable trolley features a quick-adjust design and smooth-rolling wheels for seamless handling of medium loads. Equipped with an anti-drop plate for enhanced safety, it is built to withstand the rigors of industrial use. Ideal for efficient and reliable material transport, this trolley combines robust performance with user-friendly operation.

  • Lightweight, robust construction
  • Double-baked enamel trolley wheels provide added protection
  • Precision ball bearing trolley wheels
  • Anti-drop plate ensures safe load handling
  • Fits to most I-, S-, and W-beams
  • Stainless steel ID tag
  • Individual serial number and test certificate

OZ05PBT

.5 T Push Beam Trolley

    Photos

    Add-Ons

    System Components

    Drawings

    Dimensional Drawing 1

    Specs & Ratings

    Capacity - Ton (kg) 0.5 (453.60)
    Adjustable flange width - in (mm) 2.52-8 (64.01-203.20)
    Max Flange Thickness - in (mm) 1.14 (28.96)
    Dimensional Information - in (mm) A 12.25 (311.15)
    B 8.50 (215.90)
    C 7.67 (194.82)
    D 4.33 (109.98)
    E 2.83 (71.88)
    F 2.05 (52.07)
    G 4.06 (103.12)
    H 1.52 (38.61)
    I 0.75 (19.05)
    J 1.26 (32.00)
    K 2.24 (56.90)
    L 0.31 (7.87)
    M 0.82 (20.83)
    Minimum radius curve - ft (m) 2.95 (0.90)
    Net weight - lb (kg) 20 (9.09)
    Bail Pins 1

    IMPORTANT!

    *Dimensions, weights, and illustrations are for reference only and subject to change without notice.
