For demanding lifting tasks, the Geared Beam Trolley (5T) provides exceptional strength and precision. Built with a robust design and equipped with smooth rolling wheels, this trolley ensures easy maneuverability and accurate load positioning. With a 5-ton capacity, it is ideal for heavy-duty applications where control and reliability are crucial. This industrial-grade trolley is designed to handle rigorous lifting demands, making it a dependable choice for efficient and precise material handling.
Tell us about your needs and we will match you with the ideal lifting solution
| Capacity - Ton (kg) | 5 (4536) | |
| Adjustable flange width - in (mm) | 3.46-7.99 (87.88-202.95) | |
| Max Flange Thickness - in (mm) | 2.28 (57.91) | |

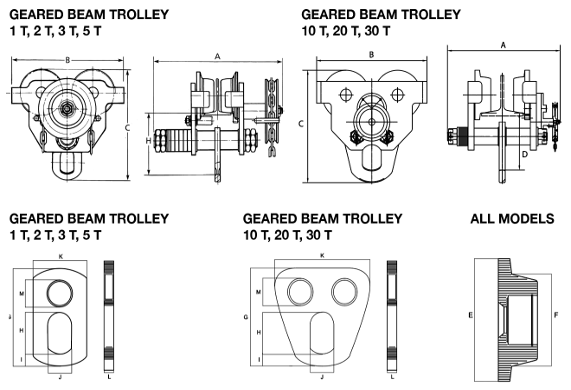

| Dimensional Information - in (mm) | A | 17.09 (434.09) |
| B | 13.62 (345.95) | |
| C | 15.08 (383.03) | |
| D | 9.09 (230.89) | |
| E | 5.57 (141.48) | |
| F | 3.86 (98.04) | |
| G | 8.11 (205.99) | |
| H | 3.35 (85.09) | |
| I | 1.26 (32) | |
| J | 2.13 (54.10) | |
| K | 4.72 (119.89) | |
| L | 0.71 (18.03) | |
| M | 1.71 (43.43) | |
| Minimum radius curve - ft (m) | 5.25 (1.60) | |
| Net weight - lb (kg) | 106 (48.08) | |
| Standard length of hand chain drop - ft (m) | 9 (2.74) | |
| Effort to pull - lb (kg) | 34 (15.45) | |
| Amount of hand chain to move the trolley one foot - ft (m) | 2 (0.61) | |
| Bail Pins | 1 |
IMPORTANT!
*Dimensions, weights, and illustrations are for reference only and subject to change without notice.
