Quick Adjust Trolley

OZ5QAT

Quick Adjust Trolley

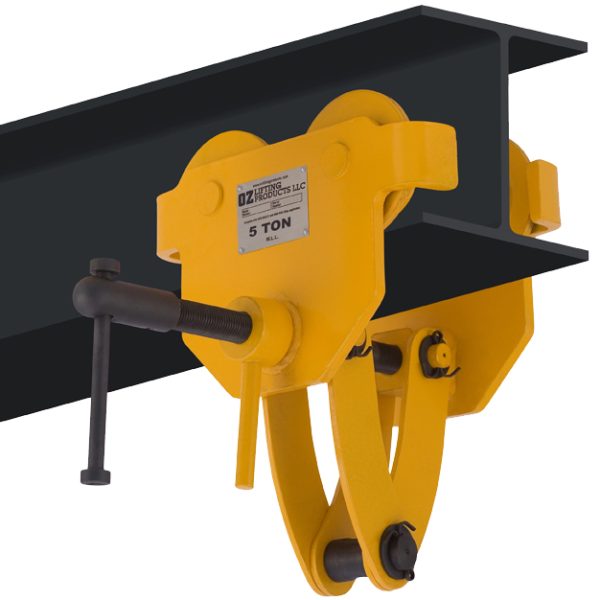

5 T Quick Adjust Trolley

Standards – CE, ASME B30.11, ASME B30.16

The Quick Adjust Trolley (5T) is built for heavy-duty material handling and efficiency. From OZ Lifting Products, this trolley is designed for secure transport of large loads along I-, S-, and W-beams. With a 5-ton capacity, it is perfect for substantial lifting tasks. Its robust design, precision wheels, and quick adjust mechanism ensure smooth operation and rapid setup, making it a dependable choice for industries requiring high-performance material handling solutions.

  • Lightweight, robust construction
  • Durable baked-enamel paint protection
  • Precision ball bearing trolley wheels
  • Anti-drop plate ensures safe load handling
  • Super-quick adjustment to most I-, S-, and W-beams
  • Safety handle lock
  • Stainless steel ID tag
  • Individual serial number and test certificate

OZ5QAT

5 T Quick Adjust Trolley

    Photos

    Add-Ons

    System Components

    Drawings

    Dimensional Drawing 1

    Specs & Ratings

    Capacity - Ton (kg) 5 (4536)
    Adjustable flange width - in (mm) 3.94-12.01 (100.08-305.05)
    Max Flange Thickness - in (mm) 3.07 (77.98)
    Dimensional Information - in (mm) A 18.50 (469.90)
    B 14.84 (376.94)
    C 1.11 (28.19)
    D 8.81-10.61 (223.77-269.49)
    E 6.10 (154.94)
    F 4.72 (119.89)
    Minimum radius curve - ft (m) 4.60 (1.40)
    Net weight - lb (kg) 102 (46.36)

    IMPORTANT!

    *Dimensions, weights, and illustrations are for reference only and subject to change without notice.
