Beam Clamp

OZ1BC

Beam Clamp

1 T Beam Clamp

Standards – CE, ASME B30.16

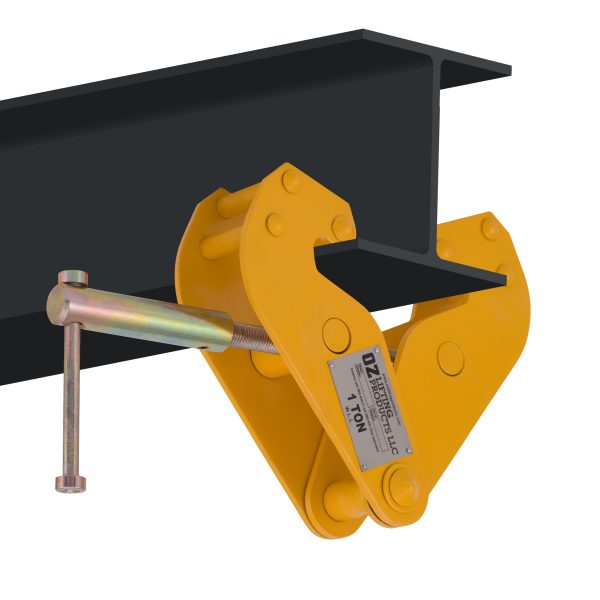

The Beam Clamp (1T) from OZ Lifting Products is a durable and versatile tool, crafted from robust steel for reliable performance. Designed for quick and easy adjustment to most I-, S-, and W-beams, this clamp features a durable baked enamel paint for long-lasting protection. It includes a stainless steel I.D. tag and comes with an individual test certificate and serial number, ensuring quality and traceability. With a 1-ton capacity, this beam clamp is ideal for light to medium-duty applications, providing secure and efficient support in various industrial settings.

  • Robust all-steel construction
  • Super-quick adjustment to most I-, S-, and W-beams
  • Durable baked enamel paint protection
  • Stainless steel ID tag
  • Individual serial number and test certificate

OZ1BC

1 T Beam Clamp

    Photos

    Add-Ons

    System Components

    Drawings

    Dimensional Drawing 1

    Specs & Ratings

    Capacity - Ton (kg) 1 (907.20)
    Dimensional Information - in (mm) A 2.95-9.05 (74.93-229.87)
    B 14.96 (379.98)
    C 2.51 (63.75)
    D 0.90 (22.86)
    E 9.13 (231.90)
    F 3.54-5.90 (89.92-149.86)
    G 1.02 (25.91)
    H 0.75 (19.05)
    Net Weight - lb (kg) 9 (4.09)
    Reduction in Working Load Limits when side loads are applied
    Angle from Vertical 0-15° 15-30° 30-45°
    Reduction Factor none 20% 35% 50%

    IMPORTANT!

    *Dimensions, weights, and illustrations are for reference only and subject to change without notice.



    WARNING: CANCER AND REPRODUCTIVE HARM

    Some products may contain chemicals known to the state of California to cause cancer, or birth defect or reproductive harm. www.P65Warning.ca.gov
