USA Push Beam Trolley

OZ1PBTA-12

USA Push Beam Trolley

1 T Push Beam Trolley with up to 12 inch flange width (Made in USA)

Standards – ASME B30.11, ASME B30.16

Oz Product Patented Technology Badge  Oz Product Made in the USA Badge
The USA Push Beam Trolley (1T with 12-inch flange) offers exceptional quality and reliability, manufactured and tested in the USA by OZ Lifting Products. This patented trolley is engineered for safe and efficient transport of heavier loads, featuring a durable, tool-free adjustment mechanism that accommodates most I-, S-, and W-beams. Enhanced with safety features including anti-drop plates and glow-in-the-dark decals, it ensures smooth operation and high safety standards. Ideal for demanding lifting tasks, this trolley combines robust design with American-made excellence.

  • Fastest adjusting trolley requiring no tools to install
  • Anti-drop plate ensures safe load handling
  • Lightweight, robust construction
  • Double-baked enamel trolley wheels provide added protection
  • Fits to most I-, S-, and W-beams
  • RoHS-compliant zinc-plated finish
  • Glow-in-the-dark decals
  • Precision ball bearing trolley wheels
  • Side plates protect trolley wheels
  • Stainless steel ID tag
  • Individual serial number and test certificate

OZ1PBTA-12

1 T Push Beam Trolley with up to 12 inch flange width (Made in USA)

    Videos

    Photos

    Add-Ons

    System Components

    Drawings

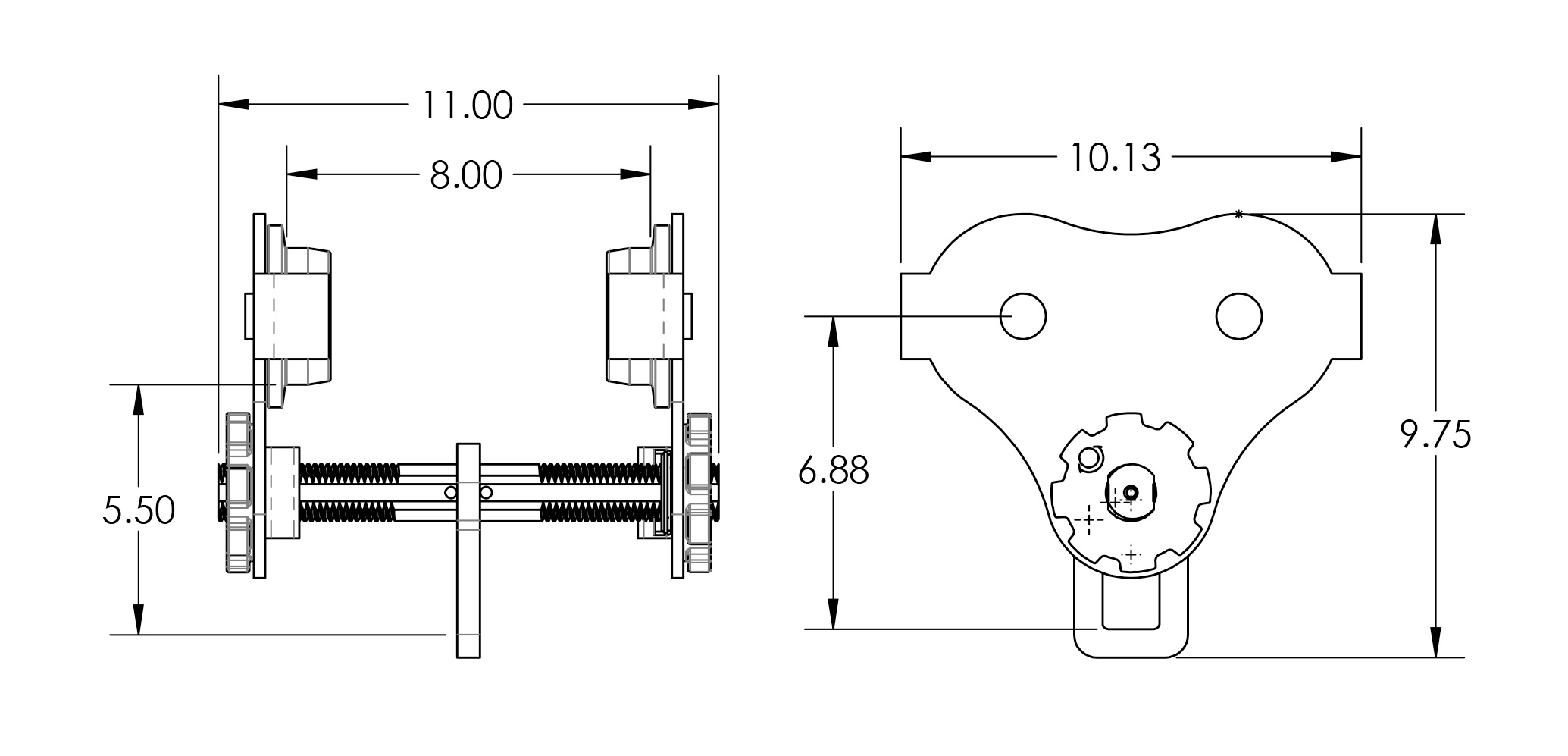

    Dimensional Drawing 1Dimensional Drawing 2

    Specs & Ratings

    Capacity - Ton (kg) 1 (907.20)
    Adjustable flange width - in (mm) 2.75-12 (69.85-304.80)
    Max Flange Thickness - in (mm) 1 (25.40)
    Dimensional Information - in (mm) A 11 (279.40)
    B 10.20 (259.08)
    C 9.80 (248.92)
    D 5.50 (139.70)
    E 4 (101.60)
    F 3 (76.20)
    G 5 (127)
    H 1.88 (47.75)
    I 0.63 (16.00)
    J 1.25 (31.75)
    K 2.50 (63.50)
    L 0.50 (12.70)
    M 1.26 (32.00)
    Minimum radius curve - ft (m) 3.35 (1.02)
    Net weight - lb (kg) 30 (13.64)

    IMPORTANT!

    *Dimensions, weights, and illustrations are for reference only and subject to change without notice.
