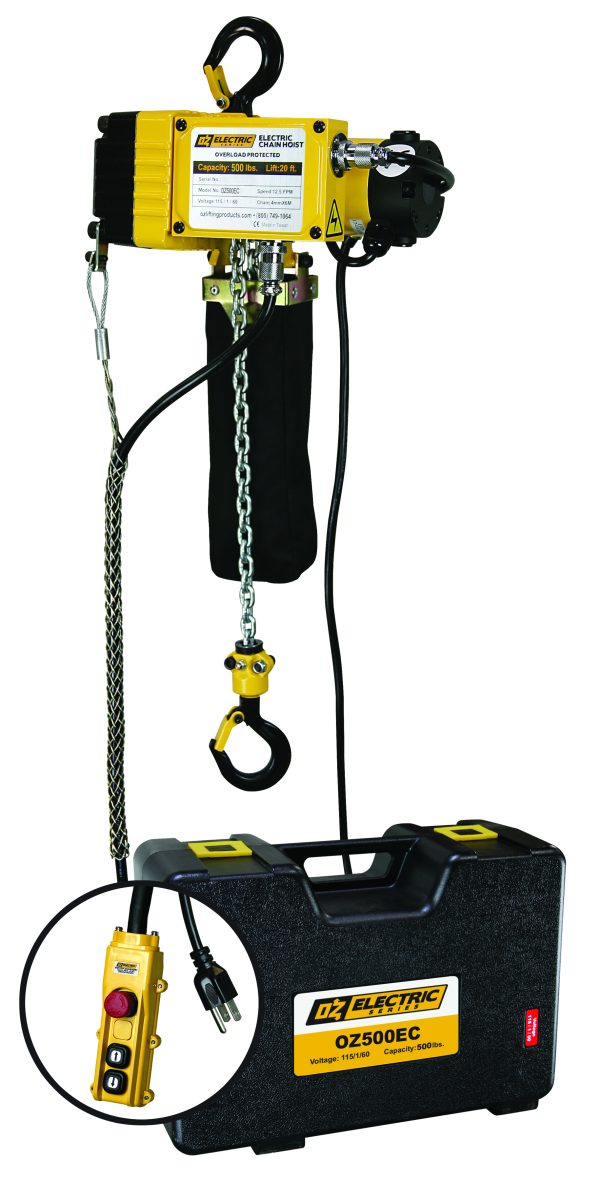

Introducing the Electric Chain Hoist from OZ Lifting Products, a compact yet powerful solution for your lifting needs. With a 500 lb capacity, this hoist excels in precision and performance. It features a wired pendant for straightforward, reliable control and is designed with precision-machined gears for smooth operation. The dual braking system enhances safety, ensuring secure lifting in any environment. Operating on a standard 115V power source, the Electric Chain Hoist combines lightweight construction with robust functionality, making it ideal for various applications.
Tell us about your needs and we will match you with the ideal lifting solution
| Voltage | 115 / 1 /60 |
| Capacity - lb (kg) | 500 (227.27) |
| Falls of Chain | 1 |
| Speed - FPM (mpm) | 12.50 (3.81) |
| Motor | 0.25 HP |
| Motor KW | 180W/4A |
| Standard Lift - ft (m) | 20 (6.10) |
| Duty Cycle (min) | 15 (25%) |
| Pendant Length - ft (m) | 15 (4.57) |
| Power Cord Length - ft (m) | 15 (4.57) |
| Net Weight - lb (kg) | 18 (8.18) |
| Wireless | NO |
| A - in (mm) | 5 (127) |
| B - in (mm) | 15 (381) |
| C - in (mm) | 9.5 (241.3) |
| D – Headroom - in (mm) | 11 (279.4) |
| E - in (mm) | 0.6 (15.24) |
| F - in (mm) | 2.5 (63.5) |
| G - in (mm) | 0.75 (19.05) |
| ASME Duty Classes | Service Classification | Description |
| H1 | Infrequent or Standby | Idle 1-6 months, use for installations and/or maintenance |
| H2 | Light | Light maintenance, fabrication, capacity loads infrequently handled, randomly distributed loads, low running time |
| H3 | Standard | General machining, randomly distributed loads, total running time ≤25% of working period |
| H4 | Heavy | High volume handling of heavy loads near rated capacity, steel warehousing, machining, foundries, total running time ≤50% of working period |
| H5 | Severe | Bulk material handling with attachments, approach continuous operation |
IMPORTANT!
*Dimensions, weights, and illustrations are for reference only and subject to change without notice.
