Name: 1000 lb Electric Chain Hoist with 30 ft of lift including ECWA wireless adapter | OZ Lifting Products
SKU: OZ1000ECW-30

1000 lb Electric Chain Hoist with 30 ft of lift including ECWA wireless adapter

OZ1000ECW-30 Downloads

Download All

Electric_Chain_Hoist_OM_ENFRSP.pdf

Electric-Chain-Hoists.pdf

OZ1000ECW-30

Electric Chain Hoist

1000 lb Electric Chain Hoist with 30 ft of lift including ECWA wireless adapter

Standards – CE, FCC

For versatile control, the Electric Chain Hoist from OZ Lifting Products offers the choice between a wired pendant and a wireless remote. With a 1000 lb capacity, this hoist is designed to handle substantial lifting tasks with ease. It features precision-machined gears and a dual braking system for smooth operation and enhanced safety. Whether you prefer wired or wireless control, the Electric Chain Hoist operates seamlessly on a standard 115V power source, making it an excellent choice for various lifting applications.

Overload protection with a high-performance friction clutch
Forged carbon steel hooks, with bottom hook rotation to prevent chain twisting
Load sheave reduces vibration and wear for smooth lifting
Precision-machined, heat-treated gears with oil bath lubrication
Dual braking system for instant and safe operation
Grade 80 case-hardened alloy steel chain for long service life
H3 duty class with 30% duty cycle for versatile applications
Operates on standard 115V power for easy use
Options for corded pendant or wireless remote control
Ergonomic IP64 pendant or remote controls with emergency stop
Lightweight, compact aluminum body
Includes durable vinyl chain bag
Individual serial number and test certificate

OZ1000ECW-30

1000 lb Electric Chain Hoist with 30 ft of lift including ECWA wireless adapter

Videos

Photos

Add-Ons

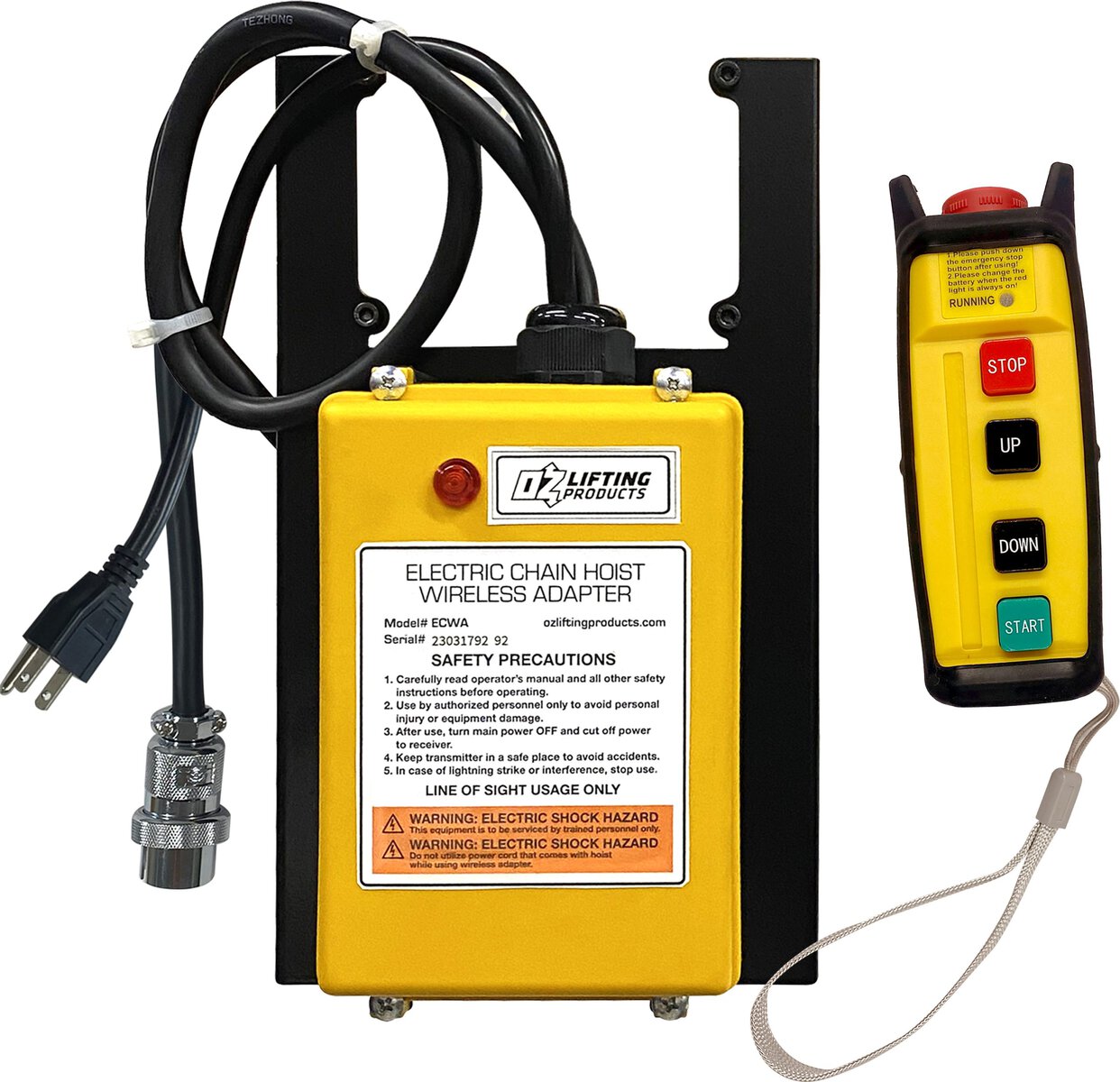

ECWA

Wireless adapter for use with OZ1000EC (all serial numbers), OZ2000EC (excluding serial numbers starting with “V”), OZ4000EC (excluding serial numbers starting with “V”)

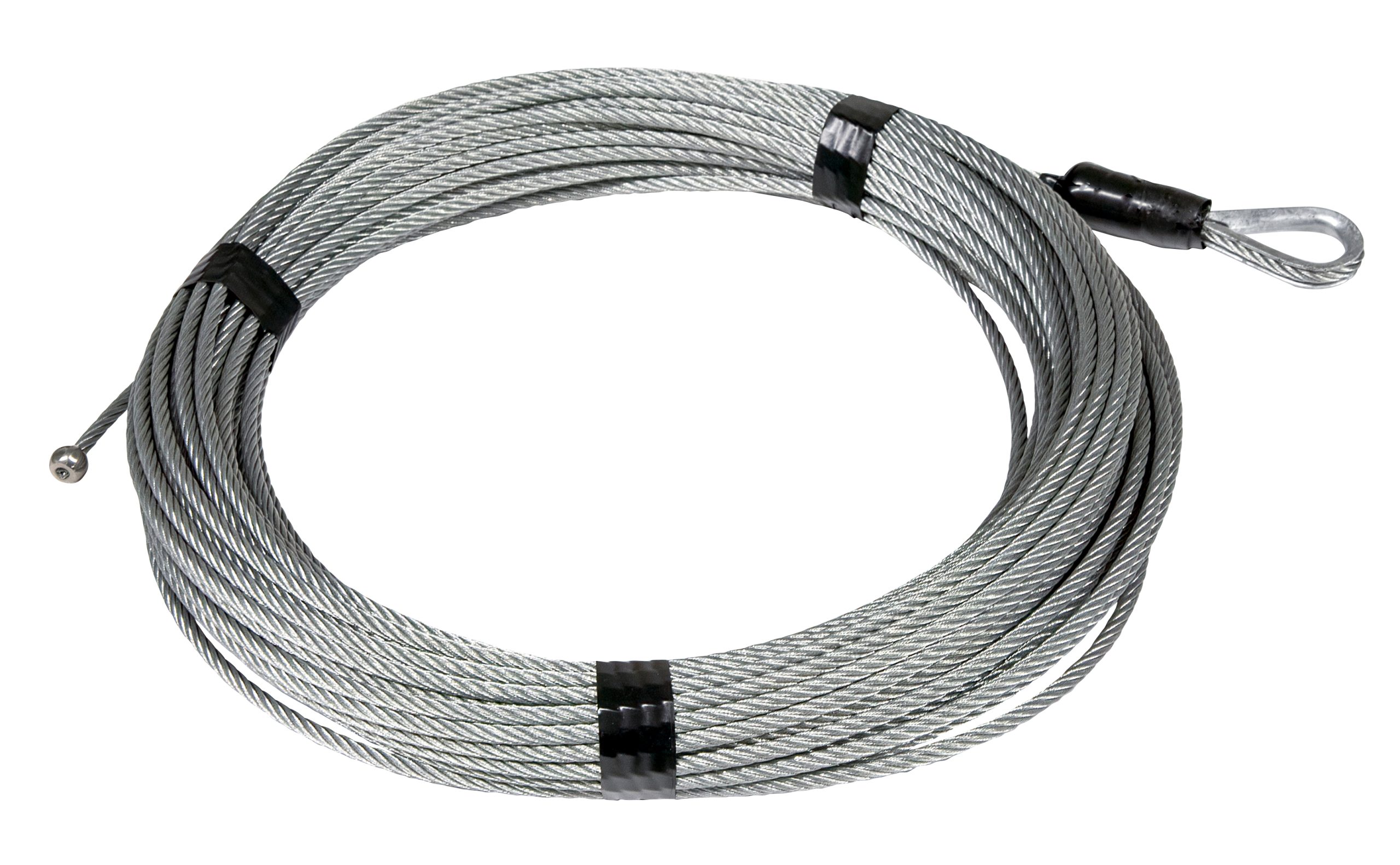

OBH500-85

Replacement 98 ft galvanized wire rope for 500 lb Electric Builder’s Hoist

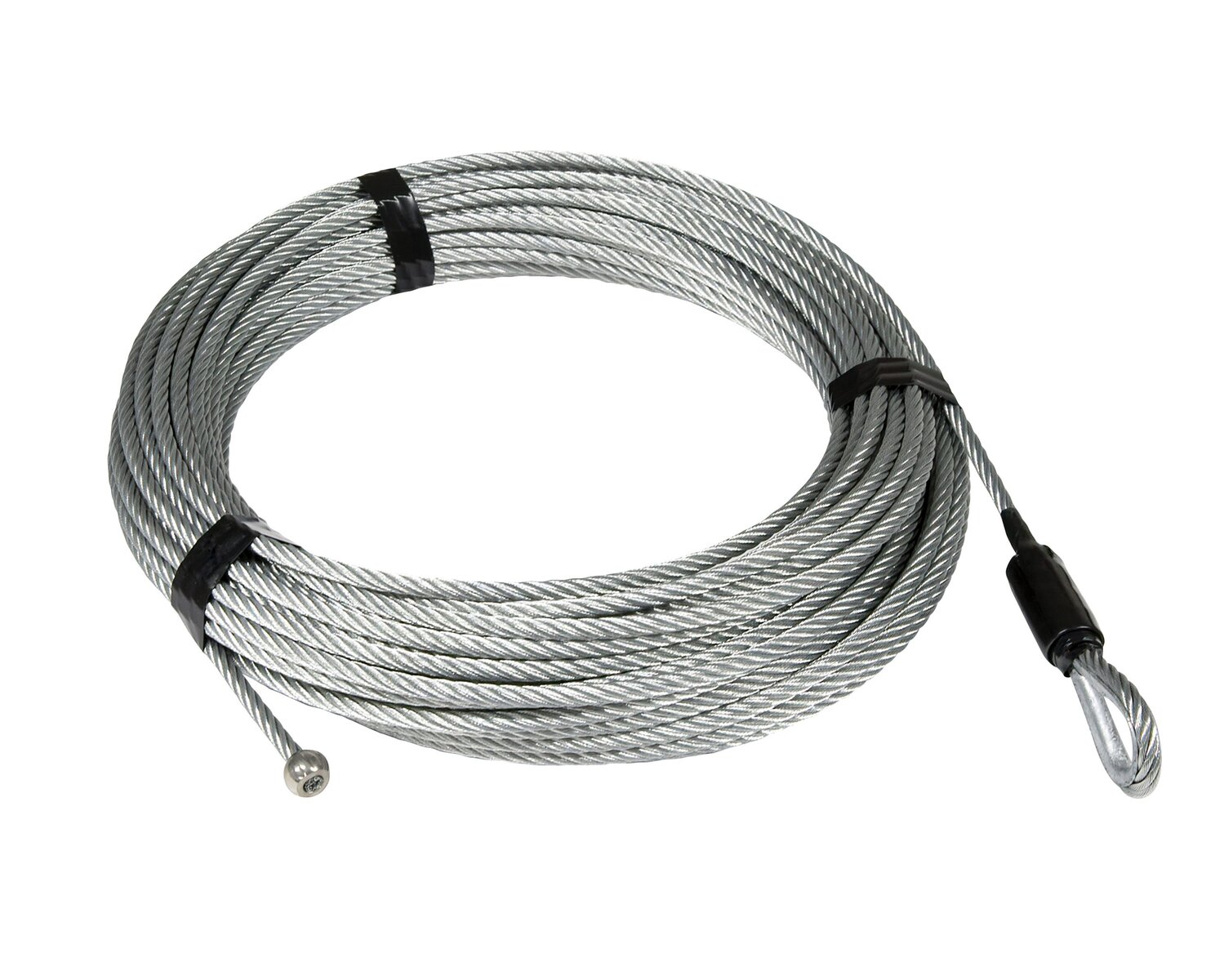

OBH1000-85

Replacement 98 ft galvanized wire rope for 1000 lb Electric Builder’s Hoist

OZPBT-OBH

Push Beam Trolley with integrated hanger for use With OBH500 and OBH1000

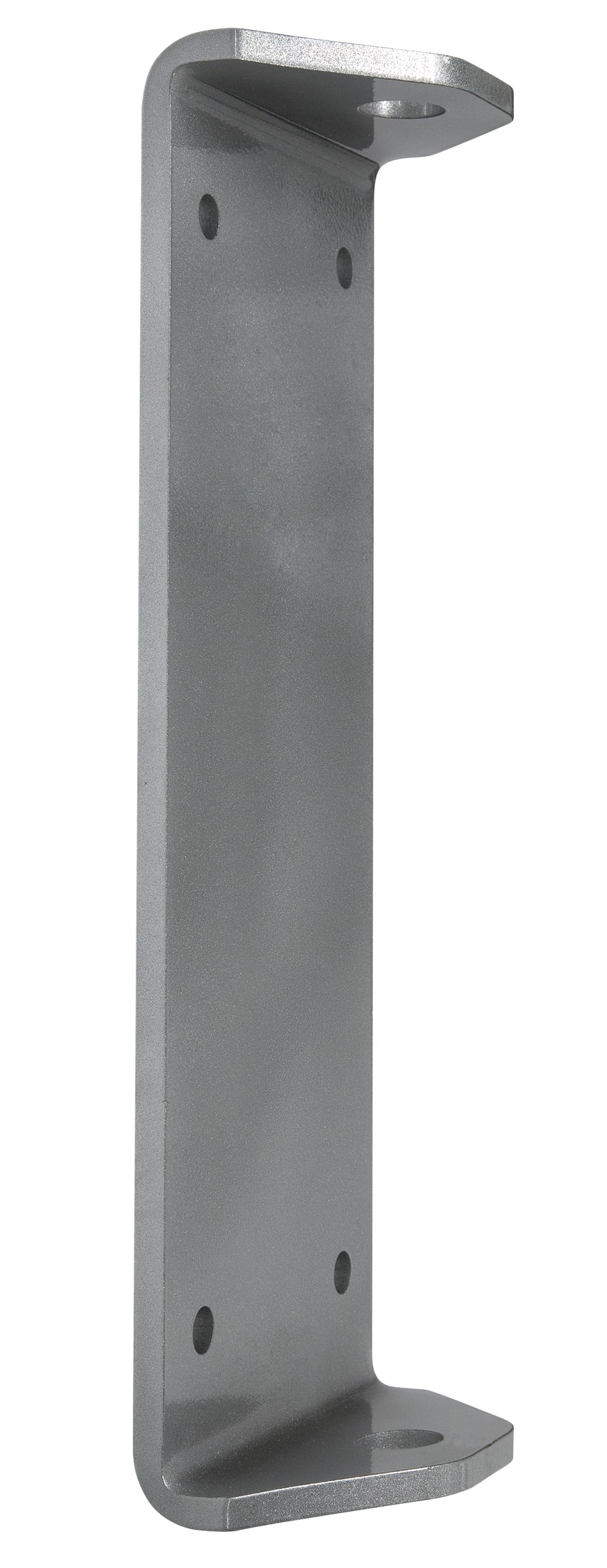

OBH230-WMK

OBH230 wall mounting kit (wall mount and template only)

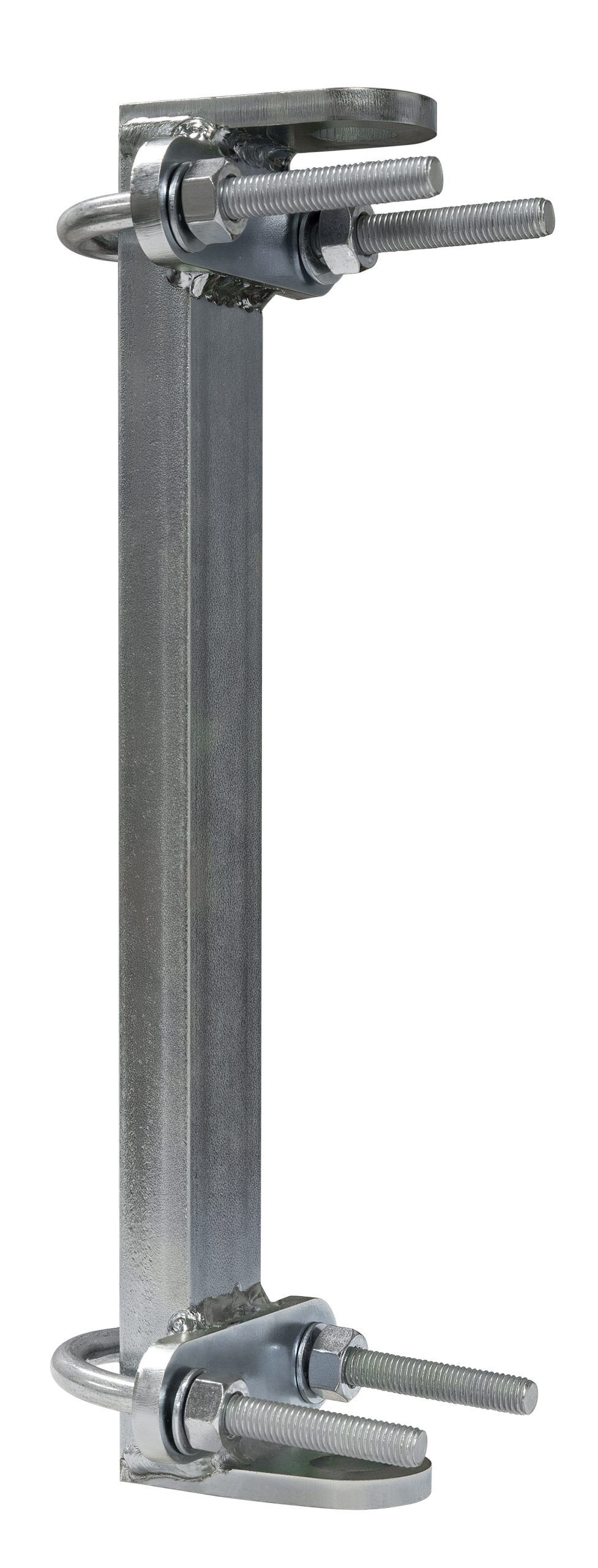

OBH230-PMK

OBH230 pipe mounting kit (bracket, U-bolts, nuts, and washers)

OBH-HC

Hoist clamp for 1000 lb and under manual or Electric Chain Hoist on OBH230 & OBH230-WALL

OZGBT-OBH

Geared Beam Trolley with integrated hanger for use with OBH500 and OBH1000

OBH230-WALL-HC

Electric Builder’s Hoist mounting arm bracket with hoist clamp (wall mount)

OBH230-HC

Electric Builder’s Hoist mounting arm bracket with hoist clamp (pipe mount)

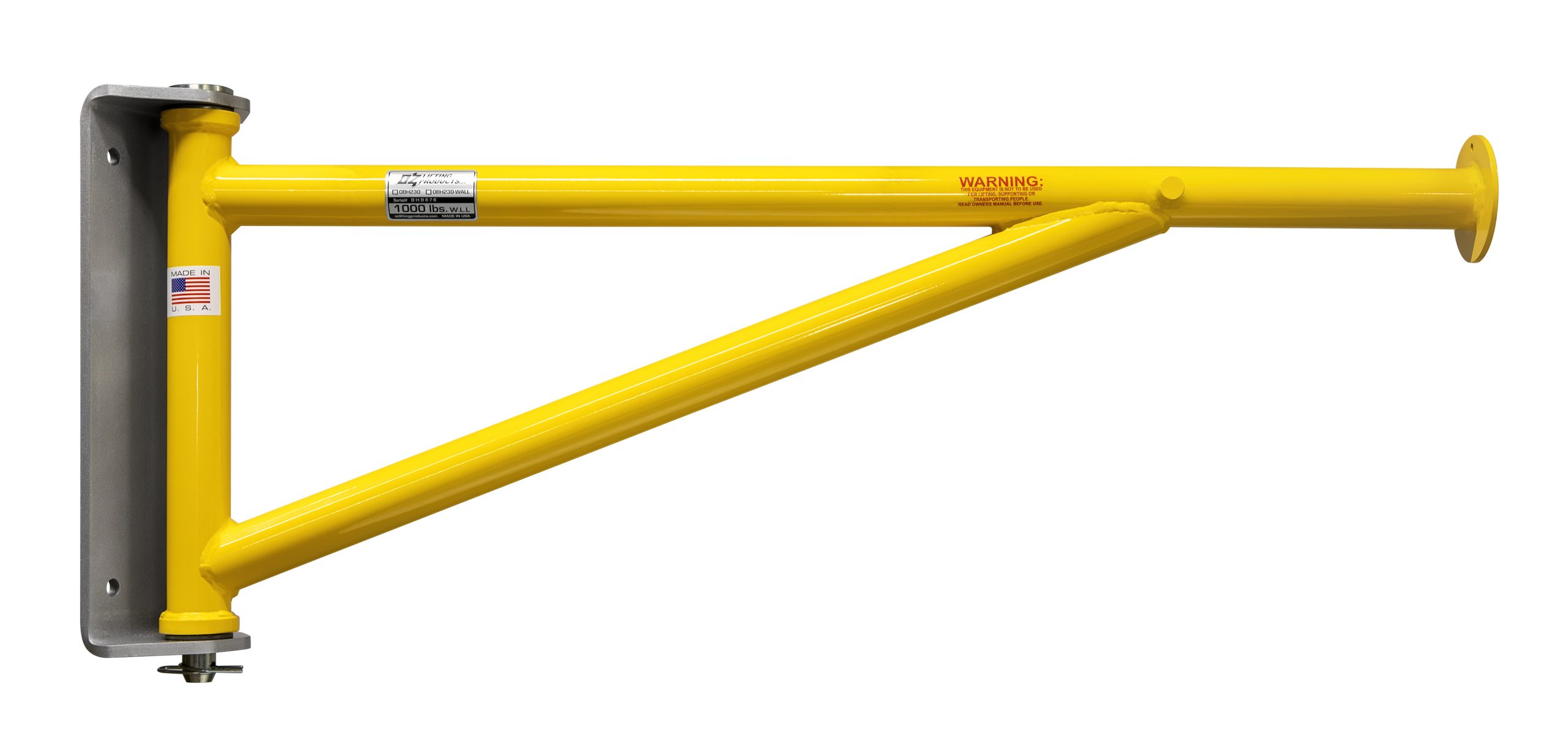

OBH230-WALL

Electric Builder’s Hoist mounting arm bracket (wall mount)

OBH230

Electric Builder’s Hoist mounting arm bracket (pipe mount)

OBH-HANGER-2

Electric Builder’s Hoist hanger only (For use with OZ1PBT and OZ1GBT only)

OBH-HANGER

Electric Builder’s Hoist hanger only (For use with OZ05PBTA-OBH and OZGBT-OBH only)

OBH-CLAMP

Electric Builder’s Hoist beam clamp (Made in USA)

OZ500EC-30

500 lb Electric Chain Hoist with 30 ft of lift

OZ500EC

500 lb Electric Chain Hoist with 20 ft of lift

OBHW500

500 lb Electric Builder’s Hoist with 90 ft of lift & wireless adapter

OBH500

500 lb Electric Builder’s Hoist with 90 ft of lift

OZ4000ECW-30

4000 lb Electric Chain Hoist with 30 ft of lift including ECWA wireless adapter

OZ4000EC-30

4000 lb Electric Chain Hoist with 30 ft of lift

OZ4000ECW-20

4000 lb Electric Chain Hoist with 20 ft of lift including ECWA wireless adapter

OZ4000EC-20

4000 lb Electric Chain Hoist with 20 ft of lift

OZ4000ECW-15

4000 lb Electric Chain Hoist with 15 ft of lift including ECWA wireless adapter

OZ4000EC-15

4000 lb Electric Chain Hoist with 15 ft of lift

OZ4000ECW-10

4000 lb Electric Chain Hoist with 10 ft of lift including ECWA wireless adapter

OZ4000EC

4000 lb Electric Chain Hoist with 10 ft of lift

OZ2000ECW-30

2000 lb Electric Chain Hoist with 30 ft of lift including ECWA wireless adapter

OZ2000EC-30

2000 lb Electric Chain Hoist with 30 ft of lift

OZ2000ECW-20

2000 lb Electric Chain Hoist with 20 ft of lift including ECWA wireless adapter

System Components

OZEXT1-TPSS

Mast extension in stainless steel for use with OZSS1500DAV (Adds 24 inches to height of davit crane)

OZSS1500DAV-DCW

1500 lb stainless steel davit crane with DC brake winch

OZSS1500DAV-ACW

1500 lb stainless steel davit crane with AC brake winch

OZSS850DAV-DCW

850 lb stainless steel davit crane with DC brake winch

OZSS850DAV-ACW

850 lb stainless steel davit crane with AC brake winch

OZIND025-30CH

.25 T Industrial Chain Hoist 30 ft

OZIND025-20CH

.25 T Industrial Chain Hoist 20 ft

OZIND025-15CH

.25 T Industrial Chain Hoist 15 ft

OZIND025-20LH

.25 T Industrial Lever Hoist 20 ft

OZIND025-15LH

.25 T Industrial Lever Hoist 15 ft

OZIND025-10LH

.25 T Industrial Lever Hoist 10 ft

OZIND300-20LH

3 T Industrial Lever Hoist 20 ft

OZIND300-15LH

3 T Industrial Lever Hoist 15 ft

OZIND300-10LH

3 T Industrial Lever Hoist 10 ft

OZWRH-SS

Wire rope holder in stainless steel

OZWRH

Wire rope keeper for use with any davit base

OZHB10-SS

10 lb. stainless steel headache ball for use with 3/16″ and 1/4″ stainless steel wire ropes

OZBACK2-SS

Backing plate in stainless steel, for use with OZWALL2-SS and OZWALL2-TPSS

OZBACK1-SS

Backing plate in stainless steel, for use with OZPED1-SS, OZPED1-TPSS, OZWALL1-SS, & OZWALL1-TPSS

OZEXT2-SS

Mast extension in stainless steel for use with OZSS850DAV (Adds 24 inches to height of davit crane)

OZWALL2-TPSS

Wall mount base in stainless steel, for use with OZTP500DAV davit cranes

OZWALL2-SS

Wall mount base in stainless steel, for use with OZSS850DAV, OZ1000DAV and OZCF1200DAV davit cranes

OZSOC2-TPSS

Socket base in stainless steel, for use with OZTP500DAV davit cranes

OZSOC2-SS

Socket base in stainless steel, for use with OZSS850DAV, OZ1000DAV and OZCF1200DAV davit cranes

OZPED2-TPSS

Pedestal base in stainless steel, for use with OZTP500DAV davit cranes

OZPED2-SS

Pedestal base in stainless steel, for use with OZSS850DAV, OZ1000DAV and OZCF1200DAV davit cranes

OZWALL1-TPSS

Wall mount base in stainless steel, for use with OZSS1500DAV, OZA1000DAV, OZXR1000DAV, OZTP1200DAV davit cranes

OZWALL1-SS

Wall mount base in stainless steel, for use with OZ1200DAV davit crane

OZSOC1-TPSS

Socket base in stainless steel, for use with OZSS1500DAV, OZA1000DAV, OZXR1000DAV, OZTP1200DAV davit cranes

OZSOC1-SS

Socket base in stainless steel, for use with OZ1200DAV davit crane

Drawings

Specs & Ratings

Voltage	115 / 1 /60
Capacity - lb (kg)	1000 (454.55)
Falls of Chain	1
Speed - FPM (mpm)	20 (6.10)
Motor	1.8 HP
Motor KW	1400W/10A
Standard Lift - ft (m)	20 (6.10)
Duty Cycle (min)	18 (30%)
Pendant Length - ft (m)	19 (5.79)
Power Cord Length - ft (m)	15 (4.57)
Net Weight - lb (kg)	54.80 (24.91) / 60.50 (27.5)
Wireless	YES

A - in (mm)	6.69 (169.93) / 10.69 (271.53)
B - in (mm)	27 (685.8)
C - in (mm)	17.72 (450.09)
D – Headroom - in (mm)	16.93 (430.02)
E - in (mm)	1.02 (25.91)
F - in (mm)	3.62 (91.95)
G - in (mm)	0.87 (22.1)

ASME Duty Classes	Service Classification	Description
H1	Infrequent or Standby	Idle 1-6 months, use for installations and/or maintenance
H2	Light	Light maintenance, fabrication, capacity loads infrequently handled, randomly distributed loads, low running time
H3	Standard	General machining, randomly distributed loads, total running time ≤25% of working period
H4	Heavy	High volume handling of heavy loads near rated capacity, steel warehousing, machining, foundries, total running time ≤50% of working period
H5	Severe	Bulk material handling with attachments, approach continuous operation

IMPORTANT!

*Dimensions, weights, and illustrations are for reference only and subject to change without notice.
