Name: 4000 lb Electric Chain Hoist with 30 ft of lift | OZ Lifting Products
SKU: OZ4000EC-30

OZ4000EC-30 Downloads

Download All

Electric_Chain_Hoist_OM_ENFRSP.pdf

Electric-Chain-Hoists.pdf

OZ4000EC-30

Electric Chain Hoist

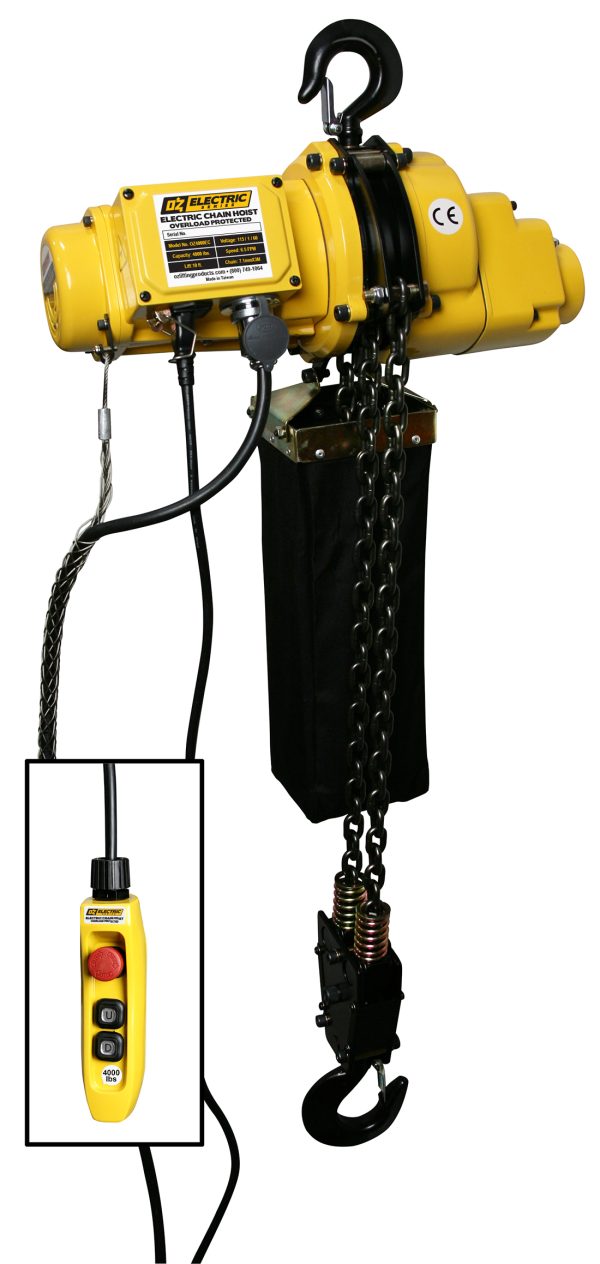

4000 lb Electric Chain Hoist with 30 ft of lift

Standards – CE, FCC

For maximum lifting power, the Electric Chain Hoist is engineered to handle up to 4000 lbs with ease. This high-capacity hoist features a wired pendant for precise control and is built with precision-machined gears to ensure smooth, efficient operation. The dual braking system enhances safety, making it ideal for the most demanding industrial environments. Operating on a standard 115V power source, the Electric Chain Hoist combines exceptional strength with a lightweight design, suited for heavy-duty lifting tasks.

Overload protection with a high-performance friction clutch
Forged carbon steel hooks, with bottom hook rotation to prevent chain twisting
Load sheave reduces vibration and wear for smooth lifting
Precision-machined, heat-treated gears with oil bath lubrication
Dual braking system for instant and safe operation
Grade 80 case-hardened alloy steel chain for long service life
H3 duty class with 30% duty cycle for versatile applications
Operates on standard 115V power for easy use
Options for corded pendant or wireless remote control
Ergonomic IP64 pendant or remote controls with emergency stop
Lightweight, compact aluminum body
Includes durable vinyl chain bag
Individual serial number and test certificate

OZ4000EC-30

4000 lb Electric Chain Hoist with 30 ft of lift

Videos

Photos

Add-Ons

ECWA

Wireless adapter for use with OZ1000EC (all serial numbers), OZ2000EC (excluding serial numbers starting with “V”), OZ4000EC (excluding serial numbers starting with “V”)

OZ500EC-30

500 lb Electric Chain Hoist with 30 ft of lift

OZ500EC

500 lb Electric Chain Hoist with 20 ft of lift

OZ5QAT

5 T Quick Adjust Trolley

OZ5PBT

5 T Push Beam Trolley

OZ5GBT

5 T Geared Beam Trolley

OZ5BC

5 T Beam Clamp

OZ4000EC-20

4000 lb Electric Chain Hoist with 20 ft of lift

OZ4000EC-15

4000 lb Electric Chain Hoist with 15 ft of lift

OZ4000EC

4000 lb Electric Chain Hoist with 10 ft of lift

OZ30GBT

30 T Geared Beam Trolley

OZ3QAT

3 T Quick Adjust Trolley

OZ3PBT

3 T Push Beam Trolley

OZ3GBT

3 T Geared Beam Trolley

OZ3BC

3 T Beam Clamp

OZ2000ECW-30

2000 lb Electric Chain Hoist with 30 ft of lift including ECWA wireless adapter

OZ2000EC-30

2000 lb Electric Chain Hoist with 30 ft of lift

OZ2000ECW-20

2000 lb Electric Chain Hoist with 20 ft of lift including ECWA wireless adapter

OZ2000EC-20

2000 lb Electric Chain Hoist with 20 ft of lift

OZ2000ECW-15

2000 lb Electric Chain Hoist with 15 ft of lift including ECWA wireless adapter

OZ2000EC-15

2000 lb Electric Chain Hoist with 15 ft of lift

OZ2000ECW-10

2000 lb Electric Chain Hoist with 10 ft of lift including ECWA wireless adapter

OZ2000EC

2000 lb Electric Chain Hoist with 10 ft of lift

OZ20GBT

20 T Geared Beam Trolley

OZ2QAT

2 T Quick Adjust Trolley

OZ2PBT

2 T Push Beam Trolley

OZ2GBT

2 T Geared Beam Trolley

OZ2BC

2 T Beam Clamp

OZ1000ECW-30

1000 lb Electric Chain Hoist with 30 ft of lift including ECWA wireless adapter

OZ1000EC-30

1000 lb Electric Chain Hoist with 30 ft of lift

System Components

OZEXT1-TPSS

Mast extension in stainless steel for use with OZSS1500DAV (Adds 24 inches to height of davit crane)

OZSS1500DAV-DCW

1500 lb stainless steel davit crane with DC brake winch

OZSS1500DAV-ACW

1500 lb stainless steel davit crane with AC brake winch

OZSS850DAV-DCW

850 lb stainless steel davit crane with DC brake winch

OZSS850DAV-ACW

850 lb stainless steel davit crane with AC brake winch

OZIND025-30CH

.25 T Industrial Chain Hoist 30 ft

OZIND025-20CH

.25 T Industrial Chain Hoist 20 ft

OZIND025-15CH

.25 T Industrial Chain Hoist 15 ft

OZIND025-20LH

.25 T Industrial Lever Hoist 20 ft

OZIND025-15LH

.25 T Industrial Lever Hoist 15 ft

OZIND025-10LH

.25 T Industrial Lever Hoist 10 ft

OZIND300-20LH

3 T Industrial Lever Hoist 20 ft

OZIND300-15LH

3 T Industrial Lever Hoist 15 ft

OZIND300-10LH

3 T Industrial Lever Hoist 10 ft

OZWRH-SS

Wire rope holder in stainless steel

OZWRH

Wire rope keeper for use with any davit base

OZHB10-SS

10 lb. stainless steel headache ball for use with 3/16″ and 1/4″ stainless steel wire ropes

OZBACK2-SS

Backing plate in stainless steel, for use with OZWALL2-SS and OZWALL2-TPSS

OZBACK1-SS

Backing plate in stainless steel, for use with OZPED1-SS, OZPED1-TPSS, OZWALL1-SS, & OZWALL1-TPSS

OZEXT2-SS

Mast extension in stainless steel for use with OZSS850DAV (Adds 24 inches to height of davit crane)

OZWALL2-TPSS

Wall mount base in stainless steel, for use with OZTP500DAV davit cranes

OZWALL2-SS

Wall mount base in stainless steel, for use with OZSS850DAV, OZ1000DAV and OZCF1200DAV davit cranes

OZSOC2-TPSS

Socket base in stainless steel, for use with OZTP500DAV davit cranes

OZSOC2-SS

Socket base in stainless steel, for use with OZSS850DAV, OZ1000DAV and OZCF1200DAV davit cranes

OZPED2-TPSS

Pedestal base in stainless steel, for use with OZTP500DAV davit cranes

OZPED2-SS

Pedestal base in stainless steel, for use with OZSS850DAV, OZ1000DAV and OZCF1200DAV davit cranes

OZWALL1-TPSS

Wall mount base in stainless steel, for use with OZSS1500DAV, OZA1000DAV, OZXR1000DAV, OZTP1200DAV davit cranes

OZWALL1-SS

Wall mount base in stainless steel, for use with OZ1200DAV davit crane

OZSOC1-TPSS

Socket base in stainless steel, for use with OZSS1500DAV, OZA1000DAV, OZXR1000DAV, OZTP1200DAV davit cranes

OZSOC1-SS

Socket base in stainless steel, for use with OZ1200DAV davit crane

Drawings

Specs & Ratings

Voltage	115 / 1 /60
Capacity - lb (kg)	4000 (1818.18)
Falls of Chain	2
Speed - FPM (mpm)	6.50 (1.98)
Motor	2.4 HP
Motor KW	1800W/13A
Standard Lift - ft (m)	10 (3.05)
Duty Cycle (min)	18 (30%)
Pendant Length - ft (m)	19 (5.79)
Power Cord Length - ft (m)	15 (4.57)
Net Weight - lb (kg)	78.60 (25.72) / 84.30 (33.32)
Wireless	NO

A - in (mm)	10.63 (270.00) / 14.63 (371.60)
B - in (mm)	30 (762)
C - in (mm)	20.08 (510.03)
D – Headroom - in (mm)	24.4 (619.76)
E - in (mm)	1.61 (40.89)
F - in (mm)	5 (127)
G - in (mm)	1.5 (38.1)

ASME Duty Classes	Service Classification	Description
H1	Infrequent or Standby	Idle 1-6 months, use for installations and/or maintenance
H2	Light	Light maintenance, fabrication, capacity loads infrequently handled, randomly distributed loads, low running time
H3	Standard	General machining, randomly distributed loads, total running time ≤25% of working period
H4	Heavy	High volume handling of heavy loads near rated capacity, steel warehousing, machining, foundries, total running time ≤50% of working period
H5	Severe	Bulk material handling with attachments, approach continuous operation
