USA Push Beam Trolley

OZ2PBTA

USA Push Beam Trolley

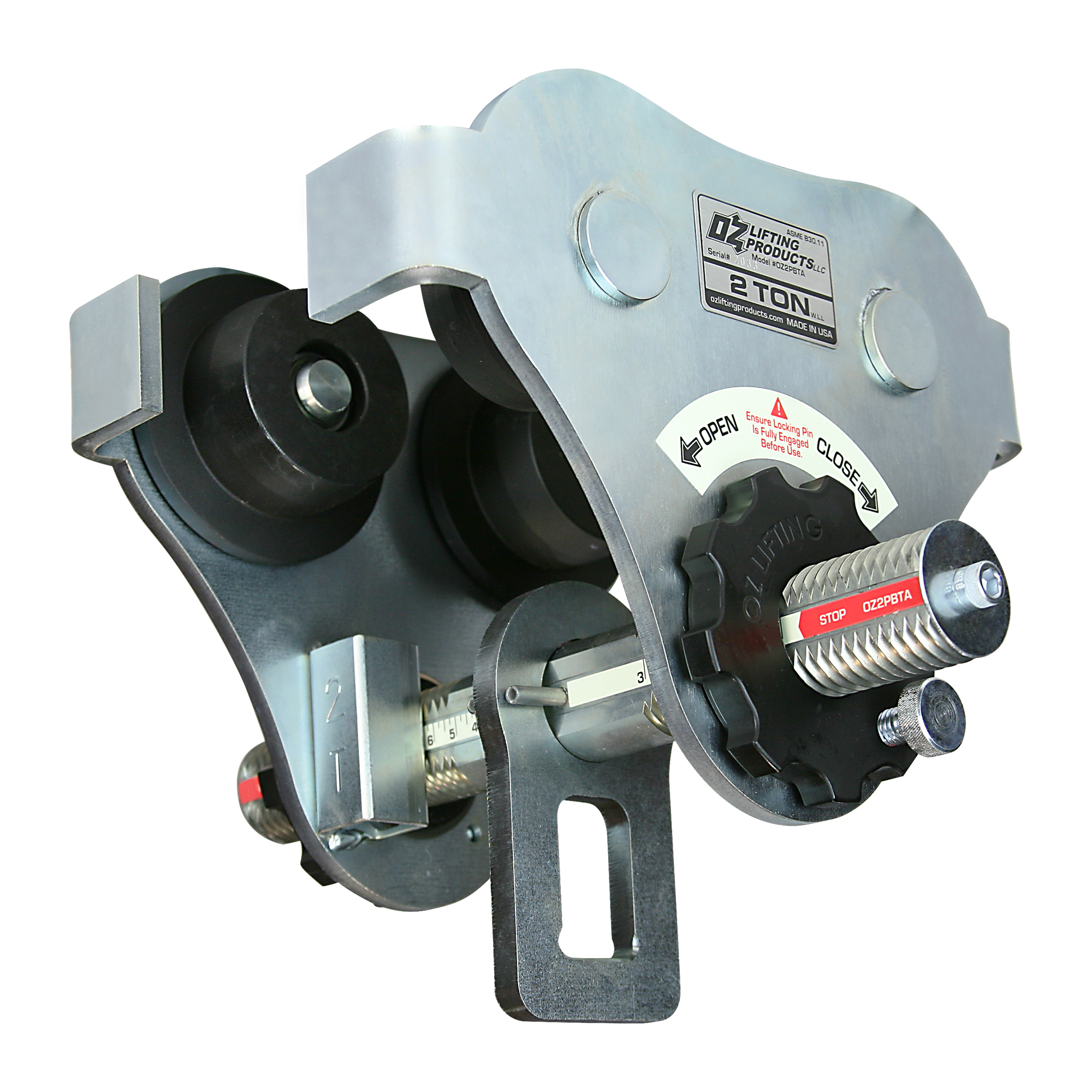

2 T Push Beam Trolley with up to 8 inch flange width (Made in USA)

Standards – ASME B30.11, ASME B30.16

Oz Product Patented Technology Badge  Oz Product Made in the USA Badge
For robust performance and safety, the USA Push Beam Trolley (2T) by OZ Lifting Products stands out. Proudly made and tested in the USA, this patented push beam trolley efficiently handles heavier loads with its durable, tool-free adjustment system that fits most I-, S-, and W-beams. It includes essential safety features such as anti-drop plates and glow-in-the-dark decals, ensuring reliable operation and maximum safety. Designed for demanding industrial applications, this trolley delivers American-made quality and dependable performance.

  • Fastest adjusting trolley requiring no tools to install
  • Anti-drop plate ensures safe load handling
  • Lightweight, robust construction
  • Double-baked enamel trolley wheels provide added protection
  • Fits to most I-, S-, and W-beams
  • RoHS-compliant zinc-plated finish
  • Glow-in-the-dark decals
  • Precision ball bearing trolley wheels
  • Side plates protect trolley wheels
  • Stainless steel ID tag
  • Individual serial number and test certificate

OZ2PBTA

2 T Push Beam Trolley with up to 8 inch flange width (Made in USA)

    Videos

    Photos

    Add-Ons

    System Components

    Drawings

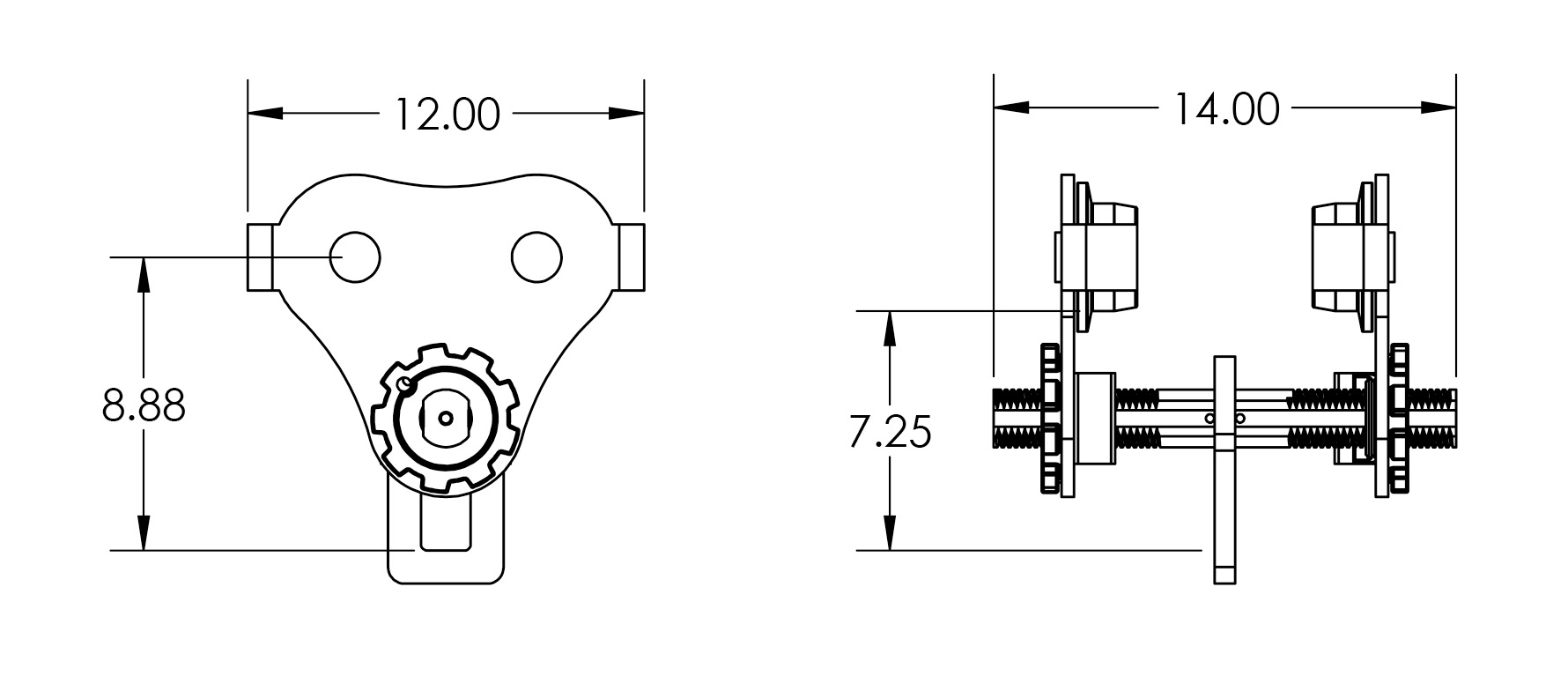

    Dimensional Drawing 1Dimensional Drawing 2

    Specs & Ratings

    Capacity - Ton (kg) 2 (1814.40)
    Adjustable flange width - in (mm) 3.75-8 (95.25-203.20)
    Max Flange Thickness - in (mm) 1.5 (38.10)
    Dimensional Information - in (mm) A 14 (355.60)
    B 12 (304.80)
    C 11.90 (302.26)
    D 8.50 (215.90)
    E 4.50 (114.30)
    F 3.25 (82.55)
    G 6.25 (158.75)
    H 2.25 (57.15)
    I 0.88 (22.35)
    J 1.38 (35.05)
    K 3.13 (79.50)
    L 0.50 (12.70)
    M 1.78 (45.21)
    Minimum radius curve - ft (m) 4.50 (1.37)
    Net weight - lb (kg) 45 (20.45)

    IMPORTANT!

    *Dimensions, weights, and illustrations are for reference only and subject to change without notice.
