USA Push Beam Trolley

OZ3PBTA

USA Push Beam Trolley

3 T Push Beam Trolley with up to 8 inch flange width (Made in USA)

Standards – ASME B30.11, ASME B30.16

Oz Product Patented Technology Badge  Oz Product Made in the USA Badge
The USA Push Beam Trolley (3T) provides superior lifting capabilities and safety, crafted and tested in the USA by OZ Lifting Products. This patented trolley is engineered for the efficient transport of heavy loads, with a robust, tool-free adjustment system that fits a variety of I-, S-, and W-beams. Equipped with safety features like anti-drop plates and glow-in-the-dark decals, it ensures smooth and secure operation. Ideal for high-capacity lifting tasks, this trolley offers exceptional American-made quality and reliability.

  • Fastest adjusting trolley requiring no tools to install
  • Anti-drop plate ensures safe load handling
  • Lightweight, robust construction
  • Double-baked enamel trolley wheels provide added protection
  • Fits to most I-, S-, and W-beams
  • RoHS-compliant zinc-plated finish
  • Glow-in-the-dark decals
  • Precision ball bearing trolley wheels
  • Side plates protect trolley wheels
  • Stainless steel ID tag
  • Individual serial number and test certificate

OZ3PBTA

3 T Push Beam Trolley with up to 8 inch flange width (Made in USA)

    Videos

    Photos

    Add-Ons

    System Components

    Drawings

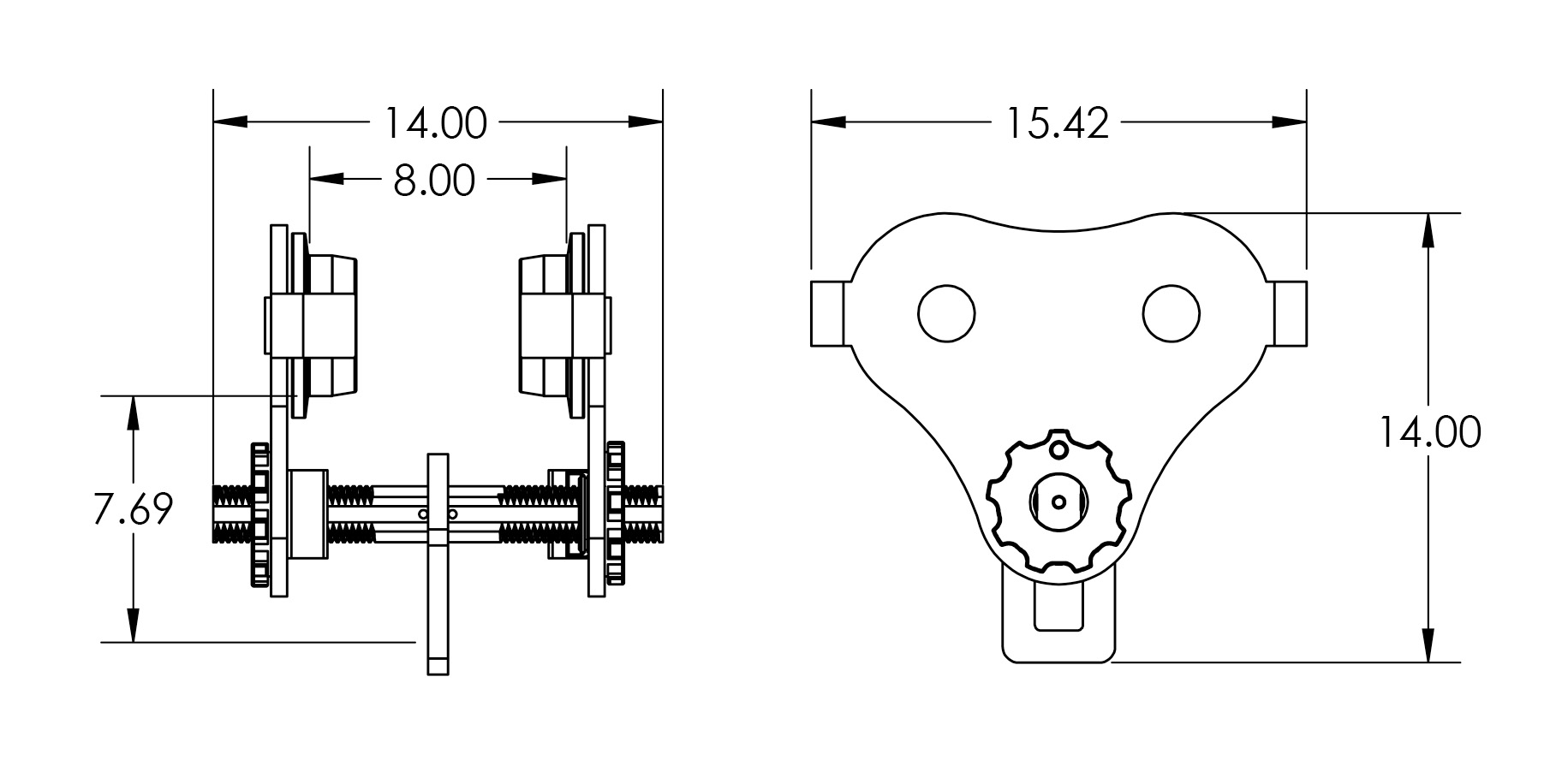

    Dimensional Drawing 1Dimensional Drawing 2

    Specs & Ratings

    Capacity - Ton (kg) 3 (2721.60)
    Adjustable flange width - in (mm) 3.75-8 (95.25-203.20)
    Max Flange Thickness - in (mm) 1.75 (44.45)
    Dimensional Information - in (mm) A 14 (355.60)
    B 15.40 (391.16)
    C 14 (355.60)
    D 9.87 (250.70)
    E 5.75 (146.05)
    F 4.38 (111.25)
    G 6.88 (174.75)
    H 2.50 (63.50)
    I 1 (25.40)
    J 1.50 (38.10)
    K 3.50 (88.90)
    L 0.63 (16.00)
    M 1.78 (45.21)
    Minimum radius curve - ft (m) 5 (1.52)
    Net weight - lb (kg) 80 (36.36)

    IMPORTANT!

    *Dimensions, weights, and illustrations are for reference only and subject to change without notice.
