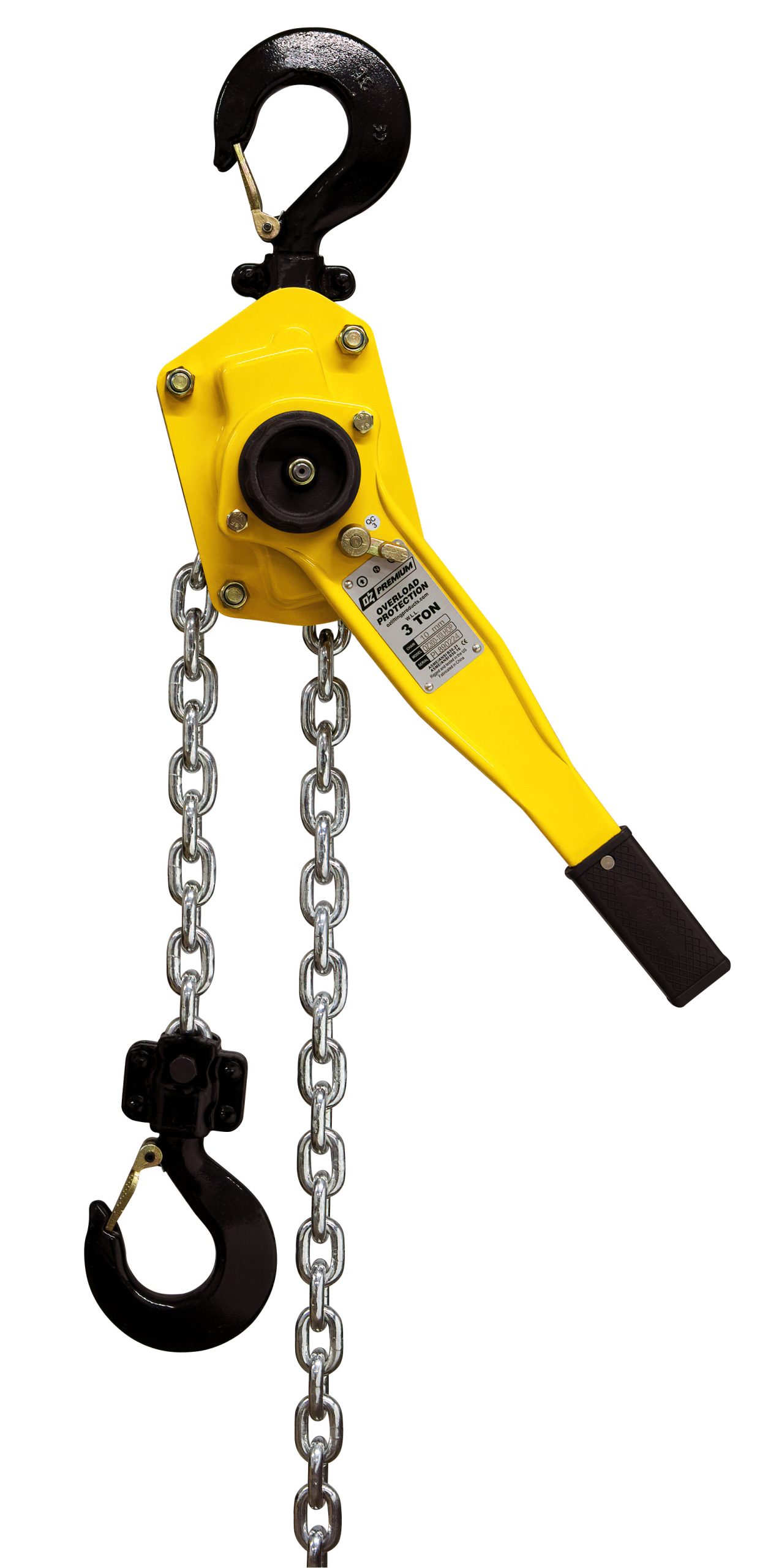

With a 3 T capacity, the Premium Lever Hoist provides superior Standard Overload Protection set around 150% of the rated load. This hoist is suitable for both lifting and pulling operations, offering quick chain adjustments and minimal effort for ease of use. The 360-degree rotating handle enables smooth operation in tight spaces. Built to last, it features a Weston-style brake system, sealed gearing, and a zinc-plated chain, ensuring reliability under demanding conditions.
Tell us about your needs and we will match you with the ideal lifting solution
| Capacity - Ton (kg) | 3 (2721.60) | |
| Headroom - in (mm) | 18.90 (480.06) | |
| Effort on lever to lift full load - lb (kg) | 70.55 (32.07) | |
| Falls of Chain | 1 | |
| Load Chain Diameter - in (mm) | 0.39x1.18 (10x30) | |
| Dimensional Information - in (mm) | A | 18.89 (479.81) |
| B | 7.08 (179.83) | |
| C | 7.87 (199.90) | |
| D | 16.14 (409.96) | |
| E | 4.52 (114.81) | |
| Hook-opening, Upper & Lower - in (mm) | F | 1.50 (38.10) |
| Net Weight of Head Only - lb (kg) | 33 (15) |
IMPORTANT!
*Dimensions, weights, and illustrations are for reference only and subject to change without notice.
