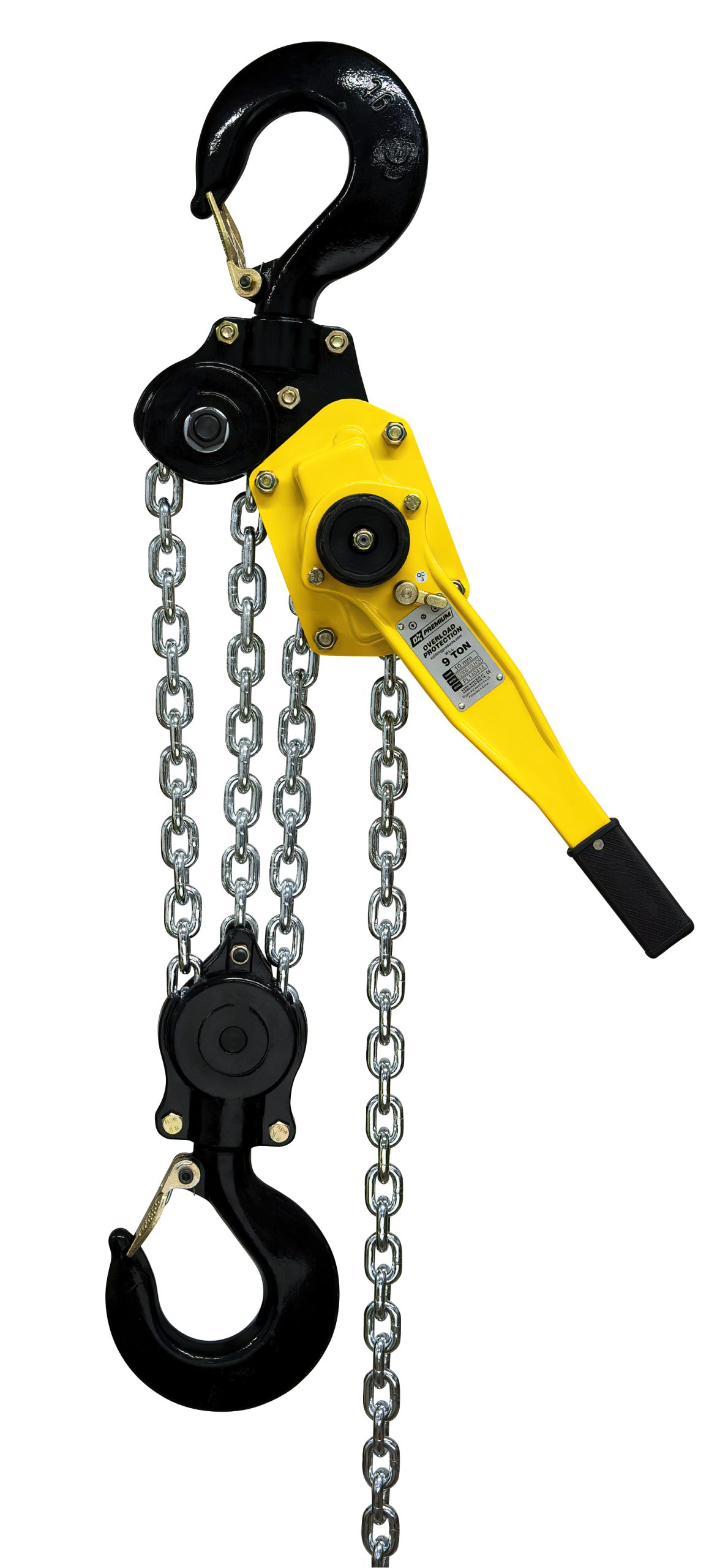

For heavy-duty needs, the Premium Lever Hoist with a 9 T capacity provides top-notch Standard Overload Protection set to about 150% of the rated load. This hoist supports both lifting and pulling tasks, featuring quick chain adjustments and requiring minimal lifting effort. The 360-degree rotating handle allows for convenient operation in restricted areas. Built for durability, it includes a Weston-style brake system, sealed gearing, and a zinc-plated chain for reliable performance in demanding scenarios.
Tell us about your needs and we will match you with the ideal lifting solution
| Capacity - Ton (kg) | 9 (8164.80) | |
| Headroom - in (mm) | 27.56 (700.02) | |
| Effort on lever to lift full load - lb (kg) | 79.37 (36.08) | |
| Falls of Chain | 3 | |
| Load Chain Diameter - in (mm) | 0.39x1.18 (10x30) | |
| Dimensional Information - in (mm) | A | 27.55 (699.77) |
| B | 12.44 (315.98) | |
| C | 7.87 (199.90) | |
| D | 16.14 (409.96) | |
| E | 4.52 (114.81) | |
| Hook-opening, Upper & Lower - in (mm) | F | 2.13 (54.10) |
| Net Weight of Head Only - lb (kg) | 81 (36.82) |
IMPORTANT!
*Dimensions, weights, and illustrations are for reference only and subject to change without notice.
