Beam Clamp

OZ3BC

Beam Clamp

3 T Beam Clamp

Standards – CE, ASME B30.16

The Beam Clamp (3T) from OZ Lifting Products is engineered for superior performance and durability. Made from high-strength steel, it offers quick and secure adjustments to most I-, S-, and W-beams. The clamp is finished with a baked enamel paint that resists corrosion and wear. It includes a stainless steel I.D. tag and an individual test certificate with a serial number for quality assurance. With a 3-ton capacity, this beam clamp is ideal for heavier lifting and supports a wide range of applications in demanding industrial settings.

  • Robust all-steel construction
  • Super-quick adjustment to most I-, S-, and W-beams
  • Durable baked enamel paint protection
  • Stainless steel ID tag
  • Individual serial number and test certificate

OZ3BC

3 T Beam Clamp

    Photos

    Add-Ons

    System Components

    Drawings

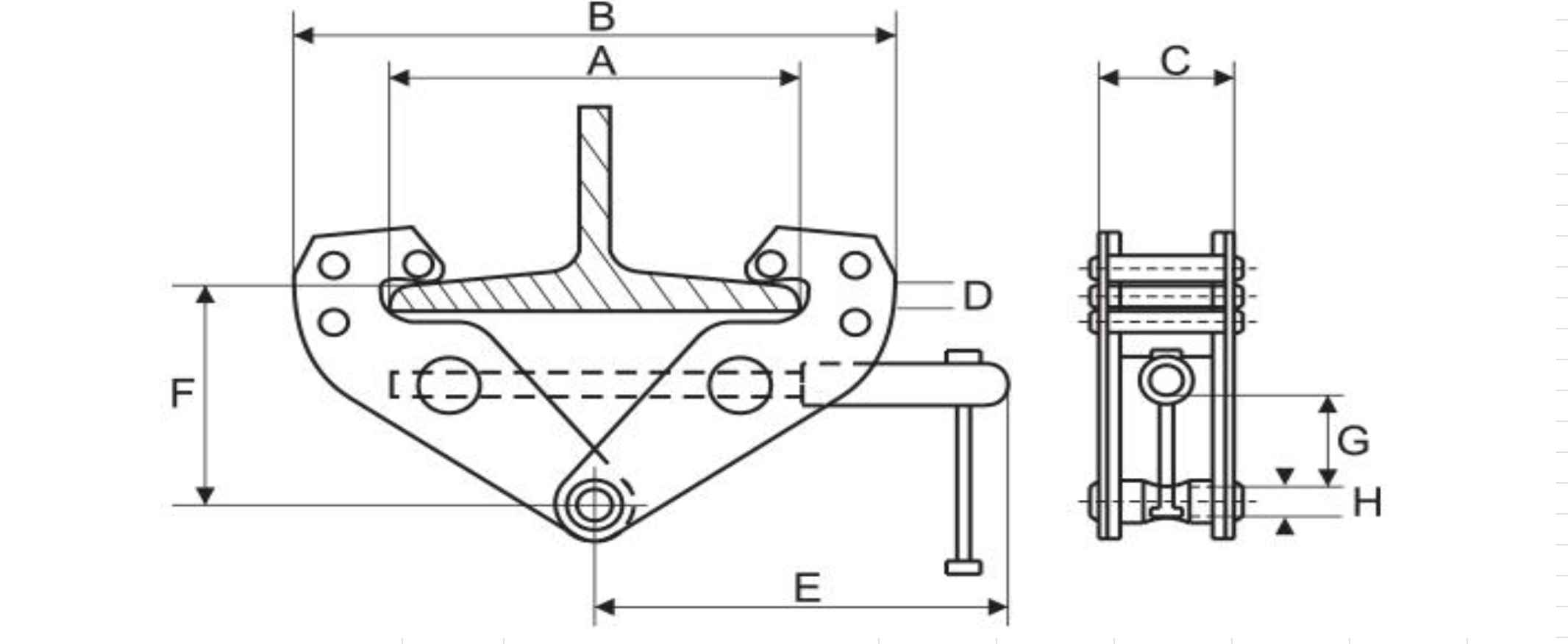

    Dimensional Drawing 1

    Specs & Ratings

    Capacity - Ton (kg) 3 (2721.60)
    Dimensional Information - in (mm) A 3.15-12.60 (80.01-320.04)
    B 18.50 (469.90)
    C 3.94 (100.08)
    D 1.57 (39.88)
    E 10.63 (270.00)
    F 5.71-8.66 (145.03-219.96)
    G 2.63 (66.80)
    H 0.96 (24.38)
    Net Weight - lb (kg) 21 (9.55)
    Reduction in Working Load Limits when side loads are applied
    Angle from Vertical 0-15° 15-30° 30-45°
    Reduction Factor none 20% 35% 50%

    IMPORTANT!

    *Dimensions, weights, and illustrations are for reference only and subject to change without notice.
